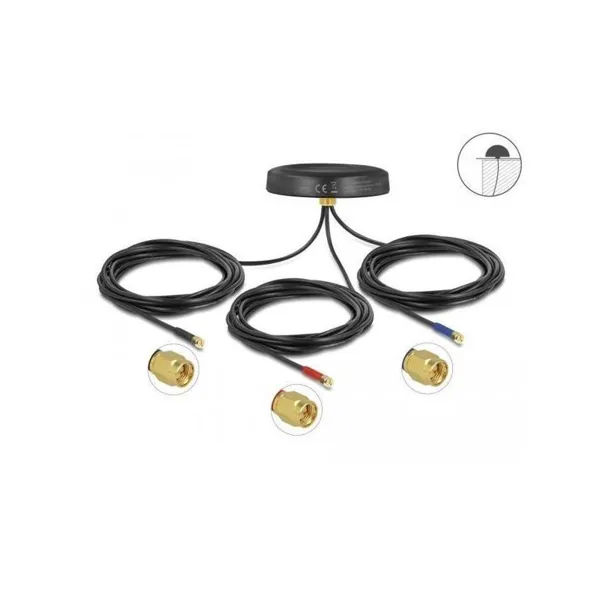

Delock – 12717 – Multiband LTE-MIMO UMTS GSM GNSS antenna 3 x SMA connector omnidirectional roof mount black outdoor

Brand:
Delock

60,23 €

incl. 19% VAT plus shipping costs

This multiband antenna from Delock has three physically separate transmitting and receiving units. Two PIFA antennas, each for LTE and GSM / UMTS, are responsible for transmitting and receiving in these ranges. The GNSS patch antenna receives the…

Show article information
In stock
When you purchase this item you will receive. 60 Points
Bulk PriceQuantity (from)Quantity (to)
60,23 € 1 19
57,72 € 20 49
57,22 € 50 199
56,72 € 200 ∞
Delivery time: 3-5 Workdays
Add to quote request
SKU 356980
EAN 4043619127177
MPN 12717
Categories , ,
Tags , ,

This multiband antenna from Delock has three physically separate transmitting and receiving units. Two PIFA antennas, each for LTE and GSM / UMTS, are responsible for transmitting and receiving in these ranges. The GNSS patch antenna receives the signals of the Global Navigation Satellite Systems GNSS.
Thanks to its outdoor properties, the multiband antenna is ideally suited to the rough everyday conditions in the fields of transport, forestry and agriculture, construction and in the maritime sector. It is waterproof, shock-proof and can be used in an extended temperature range.

  • Connectors: 3 x SMA plug
  • LTE GSM UMTS:
    • Frequency range:
    • 0.698 – 0.960 GHz
    • 1.710 – 2.700 GHz
    • GSM / UMTS / ZigBee / Z-Wave / LoRa / NB-IoT / WLAN 2.4 GHz / Bluetooth
    • Antenna gain: 2 dBi
    • Impedance: 50 Ohm
    • VSWR: 2.5
    • Polarisation: linear
    • Cable type: coaxial
    • Cable type: RG-174
    • Cable diameter: approx. 2.7 mm
    • Cable attenuation: 1.5 dB @ 1.5 GHz per metre
  • GNSS:
    • Frequency range:
    • GNSS: L1, 1.57542 GHz, 1.598 – 1.610 GHz
    • Antenna gain: 3 dBi
    • Impedance: 50 Ohm
    • VSWR: 2.5
    • Polarisation: RHCP
    • Cable type: coaxial
    • Cable type: RG-174
    • Cable diameter: approx. 2.7 mm
    • Cable attenuation: 1.5 dB @ 1.5 GHz per metre
  • LNA GNSS:
    • Frequency range:
    • GNSS: L1, 1.57542 GHz
    • Gain: 28 dBi
    • VSWR: 2.0
    • Impedance: 50 Ohm
    • Operating voltage: 2.2 – 5.0 V
    • Current consumption: 5 – 15 mA
  • Screw-on mounting
  • Operating temperature: -40 °C ~ 85 °C
  • Housing material: ABS
  • Colour: black
  • Protection class: IP67
  • Cable colour: black
  • Cable length incl. connections: approx. 3 m
  • Dimensions (Ø x H): approx. 81.0 x 15.5 mm
  • Mounting hole diameter: 12 mm

System requirements

  • Device with several free SMA connections

Package contents

  • Multiband antenna
  • Nut
Weight 0,3 kg
Dimensions 15 × 10 × 10 cm
Transmission power

2dBi
Power over Ethernet

no
Environment

outdoor
Connections

SMA
Antenna kind

GPS-GNSS-Antenna, GSM-Antenna, LTE Antenna, UMTS Antenna
Directional radio

no
Produkttyp

Antenne
cable type

RG-174
Color

black
operating tempertur

-45°C - +85°C
Frequency range

1.7- 2.7GHz, 1598 - 1610 MHz, 600MHz - 960 MHz
