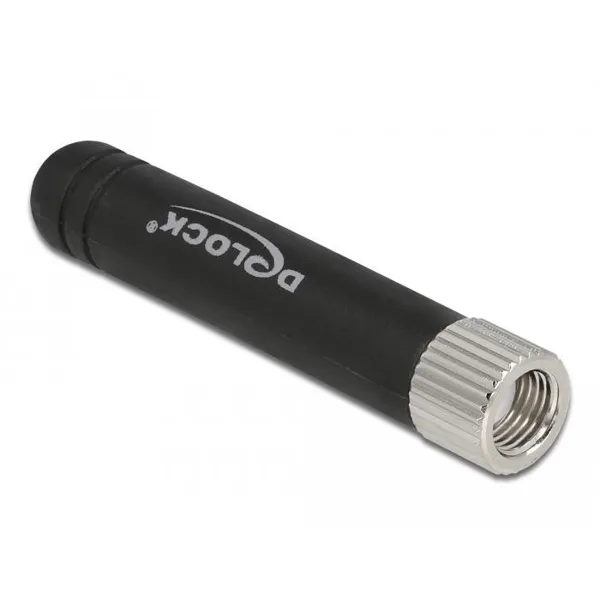

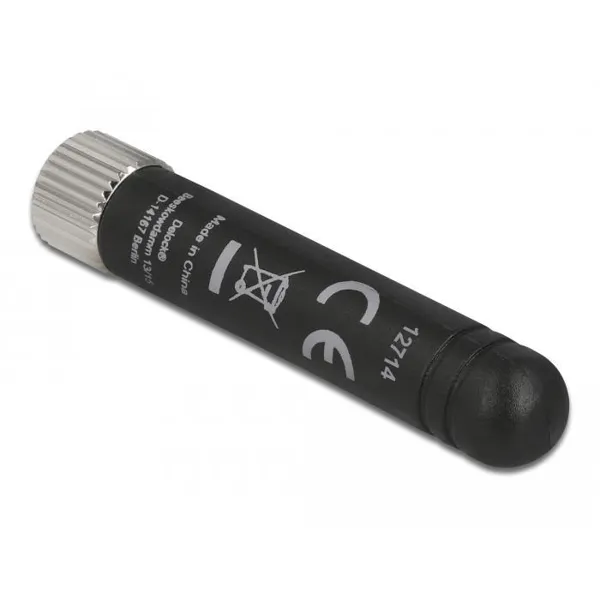

Delock – 12714 – WLAN 802.11 b/g/n antenna RP-SMA connector 1.7 – 3.7 dBi omni rigid flex. Material black

Brand:
Delock

7,03 €

incl. 19% VAT plus shipping costs

This antenna from Delock enables the use of the 2.4 GHz band indoors. It is fully compatible with Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM 2.4 GHz. Connection: 1 x RP-SMA plug Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM Frequency range: 2.4 – 2.5…

Show article information
In stock
When you purchase this item you will receive. 7 Points
Bulk PriceQuantity (from)Quantity (to)
7,03 € 1 19
6,77 € 20 49
6,71 € 50 199
6,65 € 200 ∞
Delivery time: 1-3 Workdays
Add to quote request
SKU 356977
EAN 4043619127146
MPN 12714
Categories , ,
Tags , ,

This antenna from Delock enables the use of the 2.4 GHz band indoors. It is fully compatible with Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM 2.4 GHz.

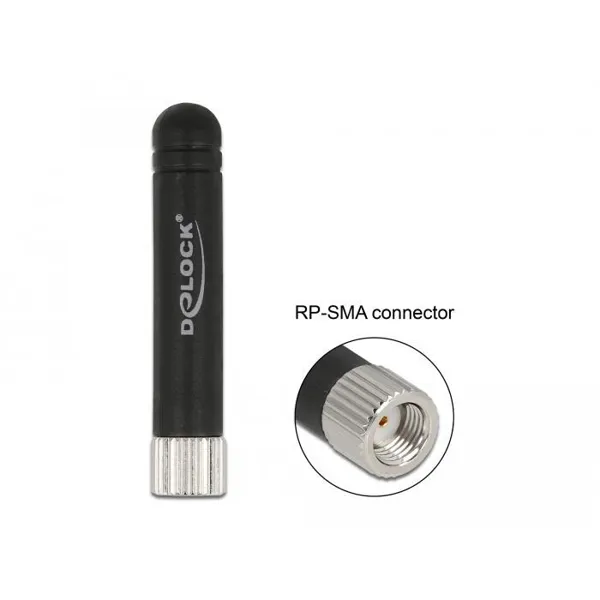

  • Connection: 1 x RP-SMA plug
  • Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM
  • Frequency range: 2.4 – 2.5 GHz
  • Antenna gain: 1.7 – 3.7 dBi
  • Impedance: 50 Ohm
  • VSWR: 1.57
  • Polarisation: linear, vertical
  • Operating temperature: -40 °C ~ 85 °C
  • Housing material: ABS
  • Colour: black
  • Antenna length: approx. 4.73 cm
Weight 0,1 kg
Dimensions 15 × 10 × 10 cm
Transmission power

2dBi
Power over Ethernet

no
Environment

indoor
Connections

RP-SMA
Antenna kind

WLAN-Antenna
Directional radio

no
Produkttyp

Antenne
antenna gain

1,7 - 3,7dBi
Color

black
operating tempertur

-40°C - +85°C
Frequency range

2.4-2.5GHz
