Delock – 12710 – GNSS BEIDOU GALILEO GLONASS GPS L1 L2 L5 Antenna MHF® I compatible connector 0-2 dBi

Brand:
Delock

7,13 €

incl. 19% VAT plus shipping costs

This antenna from Delock receives signals from BEIDOU, GALILEO, GLONASS and GPS satellites simultaneously on GNSS devices. Connection: 1 x MHF® I compatible plug Frequency range: 1176 MHz 1227 MHz 1575 MHz 1602 MHz Antenna gain: 0 – 2 dBi VSWR: 2.0…

Show article information
In stock
When you purchase this item you will receive. 7 Points
Bulk PriceQuantity (from)Quantity (to)
7,13 € 1 19
6,86 € 20 49
6,80 € 50 199
6,74 € 200 ∞
Delivery time: 1-3 Workdays
Add to quote request
SKU 356973
EAN 4043619127108
MPN 12710
Categories , ,
Tags , ,

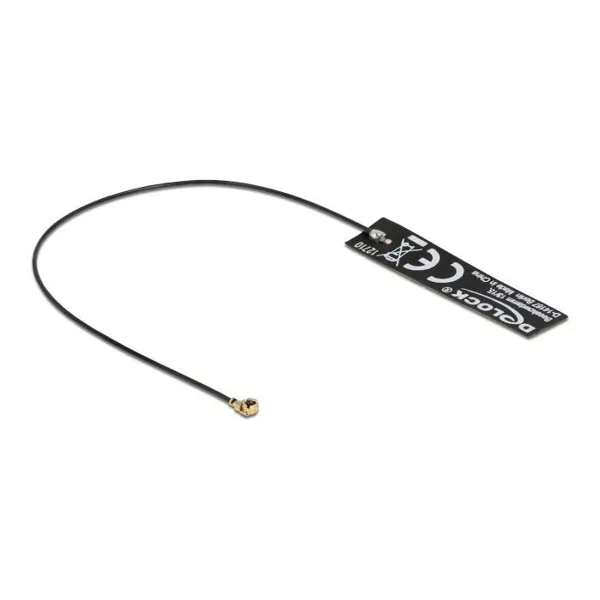

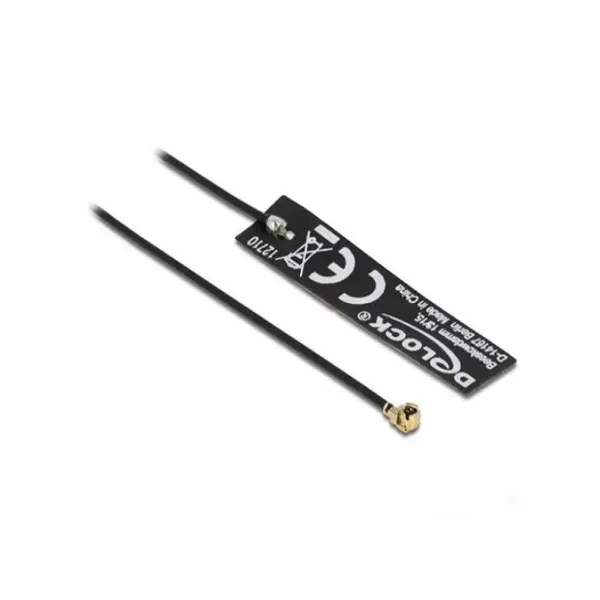

This antenna from Delock receives signals from BEIDOU, GALILEO, GLONASS and GPS satellites simultaneously on GNSS devices.

  • Connection: 1 x MHF® I compatible plug
  • Frequency range: 1176 MHz 1227 MHz 1575 MHz 1602 MHz
  • Antenna gain: 0 – 2 dBi
  • VSWR: 2.0
  • Impedance: 50 Ohm
  • Polarisation: linear, vertical
  • Mounting type: adhesive mounting
  • Operating temperature: -40 °C ~ 85 °C
  • Enclosure material: FPC
  • Colour: black
  • Cable type: coaxial
  • Cable type: 1.13
  • Cable colour: black
  • Cable diameter: approx. 1.13 mm
  • Cable attenuation: 3.2 dB @ 2.4 GHz per metre
  • Smallest bending radius: approx. 4.5 mm
  • Dimensions (LxWxH): approx. 39.0 x 6.5 x 0.2 mm
  • Length incl. connectors (L): approx. 25 cm

System requirements

  • Unit with a free MHF® I connection
Weight 0,1 kg
Dimensions 15 × 10 × 10 cm
Transmission power

0dBi, 2dBi
Power over Ethernet

no
Environment

indoor
Connections

MHF, UFL
Antenna kind

GPS-GNSS-Antenna
Directional radio

no
Produkttyp

Antenne
cable type

1.13
Color

black
operating tempertur

-45°C - +85°C
Frequency range

1.5-1.6GHz
Cable length

0.25m
