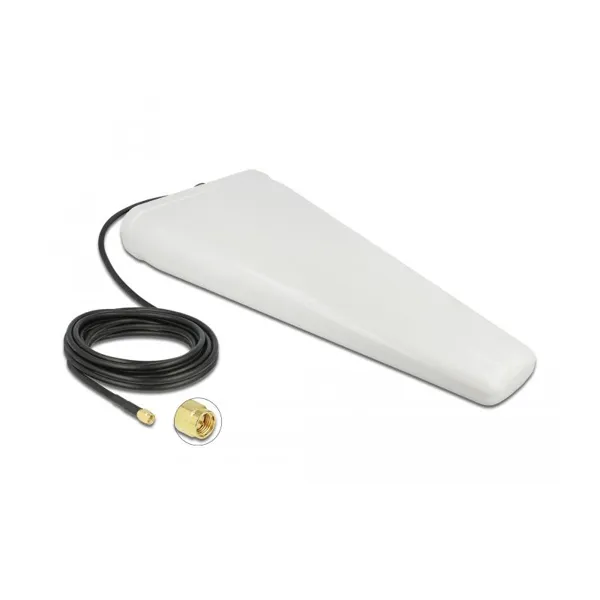

This LTE antenna by Delock enables the use of different LTE bands indoors and outdoors. It is fully compatible with GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.

Technical data
– Connection: 1 x SMA plug
– LTE band: 1 – 4; 7; 9; 10; 15; 16; 20; 23; 25; 27; 30; 33 – 41
– Frequency range: 698 – 960 MHz, 1710 – 2700 MHz
– GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave
– Antenna gain: 9 – 11 dBi
– Polarisation: vertical
– Horizontal beam angle: 70°
– Vertical beam angle: 55°
– Impedance: 50 Ohm
– VSWR: 1.5
– Operating temperature: -40 °C ~ 60 °C
– Housing material: ABS UV protected
– Colour: white
– Dimensions (LxWxH): approx. 450 x 210 x 65 mm
– Cable type: coaxial
– Cable type: RG-58
– Cable colour: black
– Cable attenuation: 0.5 dB @ 800 MHz per metre
– Cable diameter: approx. 5 mm
– Cable length incl. connections: approx. 5 m

System requirements
– Device with a free SMA socket

Package contents
– LTE antenna

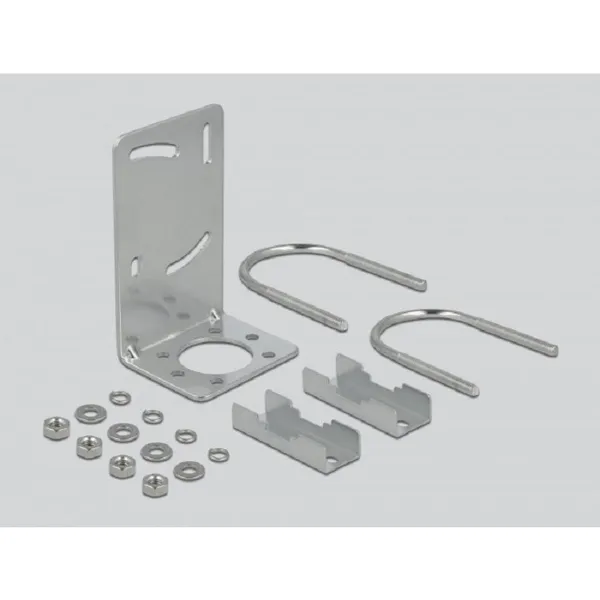

– Mast mounting kit
