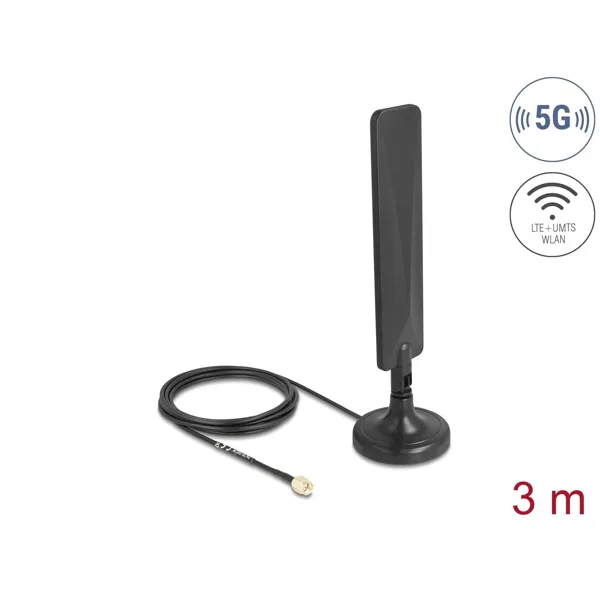

This 5G LTE antenna by Delock enables the use of various 5G LTE bands indoors. It is fully compatible with GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM and LoRa.

5G the new mobile communications standard
5G will utilise more and broader frequency spectrums than its predecessors LTE (4G) and UMTS (3G). 5G promises more throughput, capacity and low latency.

Technical data:
– Connection: 1 x SMA connector
– Frequency range: 600 – 960 MHz; 1710 – 2700 MHz; 3300 – 4000 MHz; 5150 – 6000 MHz
– Antenna gain: 3 dBi
– Impedance: 50 Ohm
– VSWR: 2.0
– Cable type: RG-174
– Cable attenuation: 0.9 dB @ 800 MHz per metre
– Cable colour: black
– Cable length: approx. 3 m
– Polarisation: linear, vertical
– Operating temperature: -40 °C ~ 70 °C
– Housing material: ABS
– Colour: black
– Dimensions: Antenna (LxWxH): approx. 205 x 60 x 11 mm; Base (DxH): approx. 31 x 61 mm

System requirements
– Device with a free SMA socket

Scope of delivery:
– Antenna
