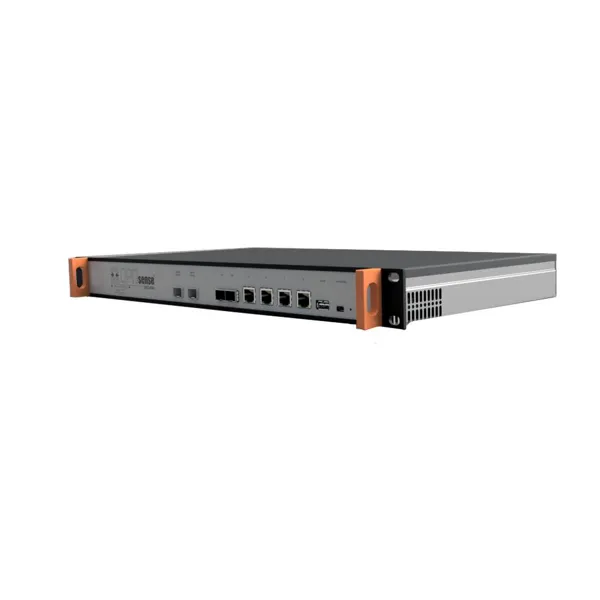

DATACENTER EDITION
A great performer with AMD EPYC™ octa core processor in a rack mountable enclosure with dual power supply.
This model includes 64GB DDR4 RAM, 1TB M.2. Solid State Flash and can handle upto 27Gbps Firewall & 2.5Gbps IPsec throughput .
Offers 8 ports in total, including 2x SFP28 25Gbps port.

Dual Power Supply
Custom designed Failover and Load Balancer*
Designed to last PSU’s with MTBF of 2092K hrs Telcordia TR/SR-332(Bellcore) or according to MIL-HDBK-217F (25°C) 282K hrs (that is still over 32 years!).|
* The integrated load balancer is not symmetric, but assures non-interrupted automatic failover.

Large Storage and Memory
One terabyte of integrated storage for logging and advanced features
Sufficient memory for most demanding features and plugins like Zenarmor (for 2000+ connected devices)

Powerful Octa Core Processor
The fastest of our single die AMD EPYC™ Embedded based solutions

Software
– Pre-installed software OPNsense® OPNsense®
– Licence Open Source + 1 year free of charge Business

Hardware specifications
– SFP28 ports [25Gbps] 2
– SFP+ ports [10Gbps] 2
– GbE RJ45 ports [ 10/100/1000Mbps ] 4
– USB 3.0 ports 1
– Console port 1
– Internal storage 1TB M.2. solid state flash 1
– Memory 64GB DDR4
– CPU cores 8 (max. frequency 3.1Ghz)
– Virtual interfaces (802.1q VLANS)1 4093

System performance
– Firewall throughput 27Gbps
– Firewall packets per second 2300Kpps
– Maximum firewall port-to-port throughput 21Gbps
– Firewall port-to-port packets per second145000
– Concurrent sessions – Firewall port-to-port packets per second Concurrent sessions 63000000
– New connections per second 50000
– Firewall latency (average) 100us
– Firewall policy (recommended maximum)1 10000
– IPsec VPN throughput (AES256GCM16) 2.5Gbps
– IPsec VPN packet per second (AES256GCM16) 220Kpps
– Threat protection throughput packet per second 163Kpps
– Threat protection throughput ~2Gpbs
– High availability with state synchronisation requires two

Dimensions & Weight
– Height x Width x Depth (mm) 44.5 (1U) x 482.6 (19″) x 280 (254 without panel)
– Height x Width x Length (inches) 1.75 x 19 x 11 (10 without panel)
– Form factor 19″ rackmountable
– Weight (device only) 3.85Kg

Environment
– Power requirements 100-240VAC, 50-60Hz
– Maximum current (single power supply) 2.2A
– Power consumption (typical – single power supply) 60W
– Heat dissipation 204.6 BTU/hr
– Operating temperature 0 to +50°C
– Storage temperature -20 to +70°C
– Humidity 10-90% non-condensing

Regulatorycompliance
– FCC Part 15 Class A, CE, Rohs

Included
– 19″ 1U rack unit
– Matching power cables (2x)
– Configuration cable
– Quick start guide
