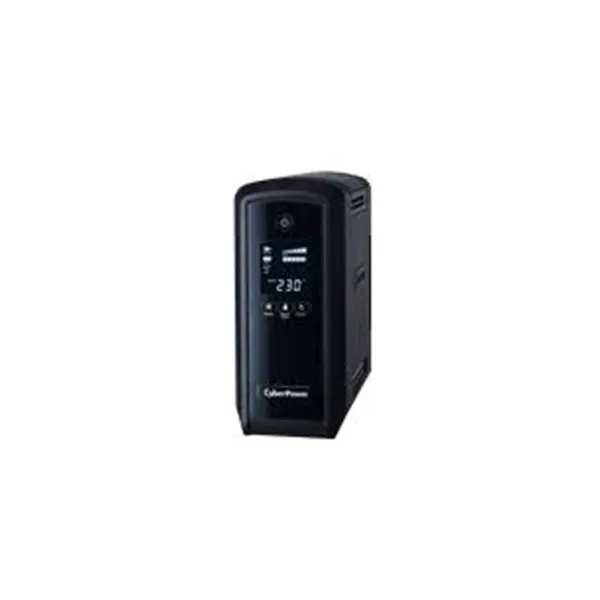

CyberPower CP900EPFCLCD – UPS 900 VA / 540 W

CyberPower PFC Sinewave Series
The PFC Sinewave Series is perfectly equipped for protecting small
servers and high-end computer systems. Integrated EMI/RFI filters
eliminate interferences reliably and thanks to its automatic voltage
regulation (AVR), it provides a constant supply voltage. Due to the
pure sine wave output voltage, it is compatible with energy-saving
power supply units using a power factor correction (PFC).

With the PowerPanel Business Software, it is the ideal solution for the full local or remote control of connected devices and enables an
automatic shutdown even of virtual clients and the host server.

• Line-Interactive Technology
• GreenPower UPS(TM) Energy-saving Technology
• Pure sine wave
• Automatic voltage regulation
• Pure sine wave
• EMI, RFI, lightning and surge protection
• Telephone and data line protection
• Auto-restart/auto-recharge
• LCD status indicator
• USB & serial interface
• Battery replaceable by user
• Schuko outlets
• PowerPanel Personal or Business Edition Software

Configuration

• Output power (VA / Watt): 900 / 540
• Topology: Line-Interactive
• Efficiency: ~ 98,5 % (GreenPower UPS(TM) Bypass Technology)
• UPS consumption* (heat loss): 3,9 W (31 BTU/h)

Input

• Input voltage range: 165 V ac – 265 V ac
• Frequency range: 50/60 Hz +/- 3 Hz (auto-detection)
• Input connector: IEC 320 C14

Output

• UPS outlets (number): (6) Schuko (battery-buffered x6)
• Output voltage on battery: Pure sine wave 230 V ac +/- 10 % (Active PFC compliant)
• Output frequency on battery: 50/60 Hz +/- 1 Hz
• Switching time (typ.) 4 ms
• Overload protection
  • On AC Power: Current limiter and circuit breaker
  • On battery: Current limiter
• Automatic voltage regulation: Single Boost

Filter and surge protection

• Surge protection: 405 Joule (L-N)
• Data line protection: RJ11 / RJ45 (1x input / 1x output)

Dimensions/Weight/Environment

• Dimensions (H x W x D) (mm): 275 x 230 x 100
• Weight (kg): 6,6
• Noise generation: Ultra-Quiet Design, fan operation only in case of power failure or high temperature, <35 dbA

Batteries

• Maintenance-free lead-acid batteries: 12 V / 8,5 AH x 1
• Battery replacement by user: YES
• Typ. recharge time: 8 hours

Run times

• Load 50 % / 75 % (min.): 8 / 4

Indicators

• LED indicators: Status
• Acoustic alarms: on battery, low battery, overload, error
• LCD display: Multifunctional display

Software

• PowerPanel(R) Personal Edition: Windows 8 / 7 / Vista / XP / 2000, Server 2012 / 2008 / 2003, Linux

UPS Management

• Management features: self-test, auto-loading / auto-restart
• Interfaces: USB HID
• USB charger: no
