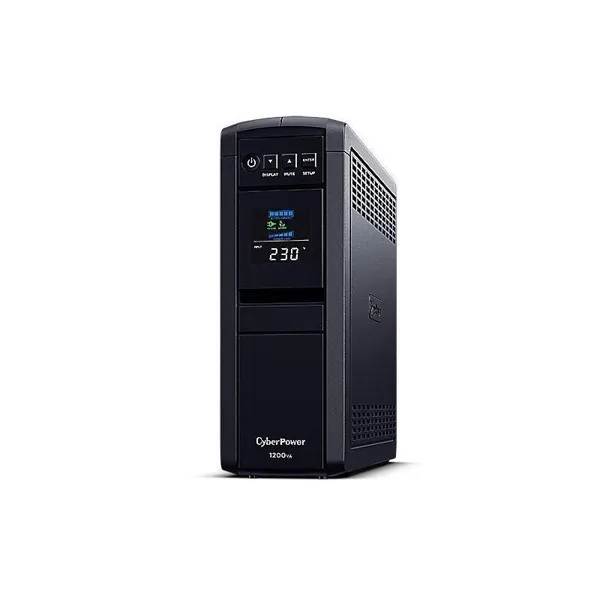

CyberPower CP1200EIPFCLCD with an output supply in pure sine wave form, it reliably protects workstations, servers and network hardware that use conventional and also Active Power Factor Correction (PFC) power supplies. With GreenPower UPS™ technology to improve UPS operating efficiency and minimise self-consumption, users can achieve significant energy cost savings compared to conventional UPS systems.

The UPS offers automatic voltage regulation (AVR) to keep the voltage stable for the connected devices. The product features data line protection with high-speed transmission to protect communication devices from surges/spikes and transmit data at a speed of 1 Gbps. The tilting colour LCD panel allows users to monitor key power and battery information at a glance. The PowerPanel power management software allows users to monitor and configure in real time.

FEATURES
– Line-interactive UPS topology
– Active PFC compatible
– Automatic Voltage Regulation (AVR)
– LED status indicator
– PowerPanel management software
– High-speed Ethernet data transfer
– Energy-saving technology
– Pure sine wave supply
– Colour LCD display – Power management software – High-speed Ethernet data transfer – Energy-saving technology – Power supply with pure sine wave LCD colour display
– SNMP / HTTP remote management capability (optional)
– Surge and lightning protection
– Floor standing enclosure

WHATIS INCLUDED
– CP1200EIPFCLCD UPS
– USB cable

* The contents of the products may vary depending on the region. Detailed information can be found in the operating instructions/quick start guide

SPECIFICATIONS
GENERAL
– Enclosure type: Tower
– UPS topology: Line-interactive
– Energy-saving technology: GreenPower UPS™ bypass technology
– Active PFC compatibility: Yes

INPUT
– Nominal input voltage (Vac)
220
230
240
– Input voltage range (Vac): 169 ~ 271
– Input frequency (Hz)
50 ± 3
60 ± 3
– Input frequency detection: Auto-sensing
– Rated input current (A): 10
– Input connector type: IEC C14
– Detachable IEC extension: Schuko x 1
– Power cord length (ft.): 6
– Power cord length (m.): 1.83

OUTPUT
– Power (VA): 1200
– Power (watts): 720
– Waveform battery operation: pure sine wave
– Output voltage (Vac): 230 ± 5 % (Under a test load of＜60%. If the load is＞60%, the output voltage range can be＞5%.)
– Frequency battery operation (Hz):
50 ± 1%
60 ± 1%
– Automatic voltage regulation (AVR): Single-Boost
– Overload protection: Internal current limitation

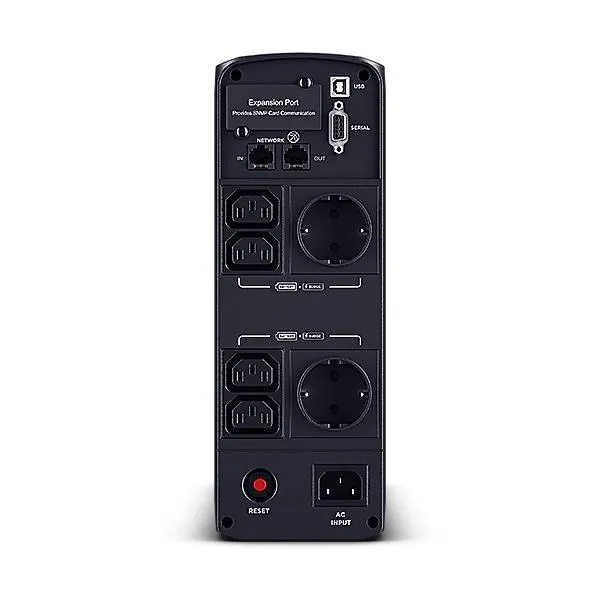

– Output – Total: 6
– Outputs:
IEC C13 x 4
Schuko x 2
– Output – Battery backup & overvoltage protection: 6
– Typical switching time (ms): 8 (at normal sensitivity)

BATTERY
– Runtime at half load (min): 11.4
– Runtime at full load (min): 3.1
– Typical charging time (hours): 8 (charge to 90% after complete discharge)
– User-replaceable: Yes
– Battery type: maintenance-free lead-gel
– Replacement battery pack RBP: RBP0146
– Replacement battery RBP quantity (pcs): 1

FILTERS & OVERVOLTAGE PROTECTION
– Overvoltage protection (joules): 405
– Network protection RJ45: 1-on 1-off

MANAGEMENT & COMMUNICATION

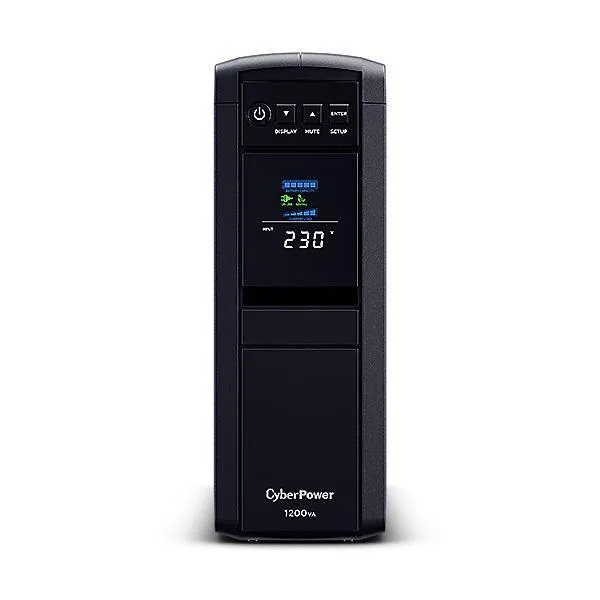

– LCD display: Yes
– LCD version: Colour LCD
– Tiltable LCD panel: 22°
– LCD display: Operation Mode, Power Display, Battery Status, Load Status, Error & Warning, Event & Log
– LCD Setting & Control: Setting Alarm, Input & Output, Battery Settings, Event & Log
– LED Indicators: Operation Status
– HID compatible USB port: 1
– Serial connection: switching contact
– Audible alarms: battery operation, low battery status, overload, UPS fault
– Management cable (pcs): USB cable x1
– Ethernet data transfer speed: Up to 1Gbps
– Management software: PowerPanel Business 4 (Recommended)
– SNMP / HTTP remote monitoring: Yes – with optional RMCARD205

PHYSICAL SIZE – UPS UNIT
– Dimension (WxHxD) (mm.): 100 x 280 x 355
– Weight (lbs.): 22.05
– Weight (kg.): 10

ENVIRONMENT
– Operating temperature (°F): 32 ~ 104
– Operating temperature (°C): 0 ~ 40
– Operating relative humidity (non-condensing) (%): 0 ~ 95
– Operating altitude (feet/metres): 0-3,000 metres
– Storage temperature (°F): 5 ~ 113
– Storage temperature (°C): -15 ~ 45
– Storage Relative Humidity (non-condensing) (%): 0 ~ 95
– Storage Altitude (Feet/Metres): 0-15,000 metres
– Online Thermal Losses (BTU/hr): 17

CERTIFICATIONS
– Certifications: CE
– RoHS: Yes
