BPI-NANO – BPI-NANO

Brand:
BPI

12,43 €

incl. 19% VAT plus shipping costs

The BPI-Nano is a Arduino Nano board, it is a small, complete, and breadboard-friendly board based on the ATmega328 (same Arduino Nano 3.0), Fully compatible with Arduino Nano，It has more or less the same functionality of the Arduino Duemilanove. It…

Show article information
When you purchase this item you will receive. 12 Points
Bulk PriceQuantity (from)Quantity (to)
12,43 € 1 19
11,03 € 20 49
10,94 € 50 199
10,84 € 200 ∞
Delivery time: 8-10 Workdays
Add to quote request
SKU 400698
EAN 4251876934470
MPN BPI-NANO
Categories , ,
Tags , , ,

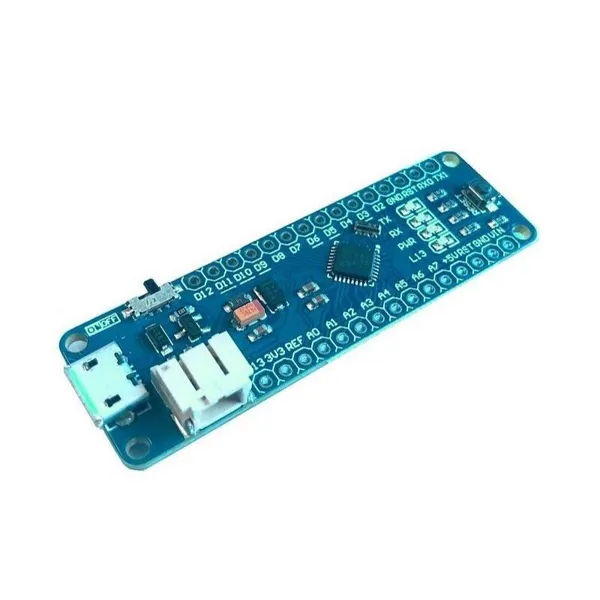

The BPI-Nano is a Arduino Nano board, it is a small, complete, and breadboard-friendly board based on the ATmega328 (same Arduino Nano 3.0), Fully compatible with Arduino Nano，It has more or less the same functionality of the Arduino Duemilanove. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one. The Nano was designed and is being produced by Gravitech

Main specifications:
– ATmega328P @16 MHz.
– 32 KB Flash.
– 2 KB SRAM.
– 1 KB EEPROM

Technical Data:
– Microcontroller: ATmega328P
– Operating Voltage: 5V
– Input Voltage: (recommended) 7-12V
– Input Voltage: (limits) 6-20V
– Digital I/O Pins. 14(include 6 PWM output)
– PWM PIN: 6
– Analog Input Pins: 6
– I /O output Max: 20mA
– 3.3V output Max: 50mA
– Flash: 32KB(ATmega328P) and 0.5KB used by bootloader
– SRAM: 2KB(ATmega328P)
– EEPROM: 1KB(ATmega328P)
– Clock Speed :16MHz
– onboard LED: 13
– size: same as arduino NANO

Weight 0,1 kg
Dimensions 10 × 3 × 3 cm
Chipset

ATmega328P
Bluetooth

no
Memory size

0 MB
memory type

SRAM
graphic card

without
processor

ATmega328P
hard drive typ

internal Memory
scope of application

Professional
Connections

6 Pin plug/slot
type of cooling

air cooling passiv
Produkttyp

SBC / Single board Computer
Color

blue
memory size

2.5 KB
number of hard drives installed

0
memory configuration

0 MB
operating system

Ohne Betriebssystem
number of CPU cores

1
processor clock speed

16 MHz
garaphocs memory type

shared-memory
